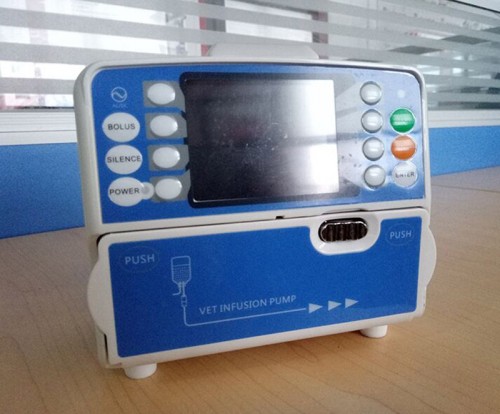

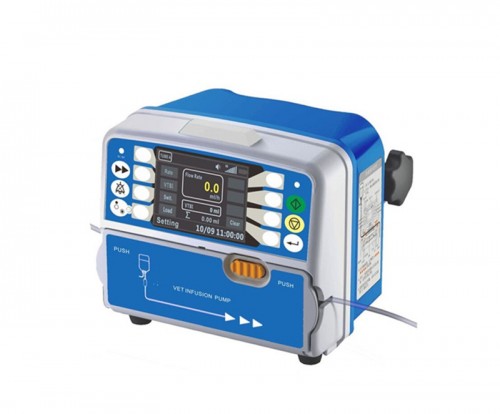

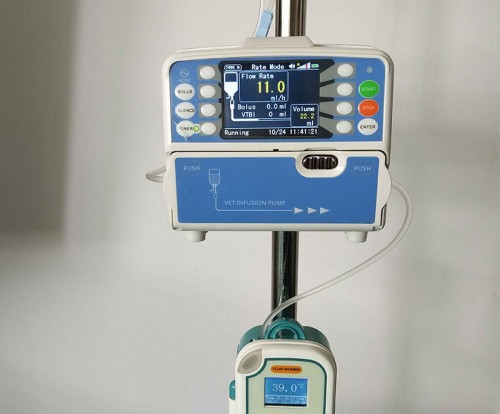

WMV200E Veterinary Infusion Pump Veterinary Medical Devices

Product Details

WMV200E Veterinary Infusion Pump     Veterinary Medical Devices    Veterinary Medical Equipment Manufacturers

Veterinary Infusion Pump Features

1. History records

2. Four operation modes:Rate mode,drip mode,time mode,body weight mode.

3. Anti-reverse rotation detection

4. Various visual and audible alarms

5. Double CPU ensuring safe infusion

6. Real time display

7. 3 adjustable occlusion pressure settings Removable pump body,convenient for cleaning

8. 12 months warranty

WONDCON Veterinary Infusion Pump Specifications

Pumping Mechanism: Curvilinear peristaltic

Occlusion Sensitivity: low, middle and high

IV Set: Support a wide variety brands of infusion set including major manufacturers & selected local brands

Air-in-line Detection: Ultrasound sensor detection with four levels of air in line alarm adjustable

Flow Rate: 0.1~1200 ml/h

 Power Supply, AC: 110/230 V (optional), 50-60 Hz, 25VA

Purge, Bolus Purge when pump stops, bolus when pump starts.Bolus rate300 ~ 1200 ml/h,purge rate 600ml/h

Battery: Rechargeable lithium polymer battery,7.4V,2100mAh operating time:about 6 hours at 25ml/h Charging time:10hs with power on, 3hs with power off.

Accuracy: Universal IV set: ±5%

Battery Life: 3 hours at 25 ml/h

VTBI: 0 ~ 9999 ml

Working Condition: Temperature:5℃~40℃,relative humidity:10~95%, air pressure:86~106kPa

Infusion Mode: rate mode, drip mode,time mode,body weight mode

Relative Humidity: 30-75%

KVO Rate: 1 ~ 5 ml/h

 Atmospheric Pressure: 860-1060 hpa

Alarms Visual and audible alarms: Door open, Air-In-Line, Occlusion,  Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.

Additional Features: Real-time shift totals, automatic power switching,mute button, purge, bolus, history log, system memory

Size&weight: 145×100×120 mm(length×width×height) 1.4kg

Safety Classification: ClassⅠ, type CF

Volume Infused: 0-36000ml

Water Proof Level: IPx3
