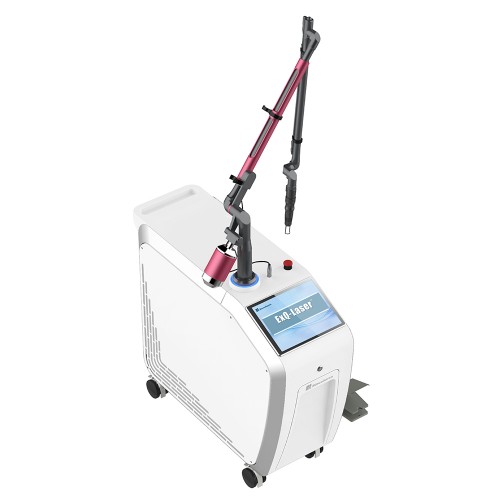

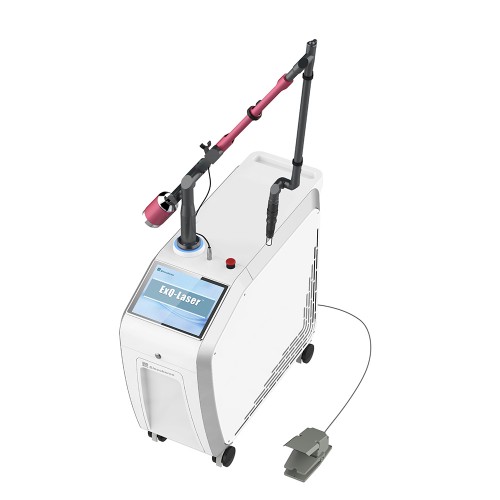

Q-Switched Nd:YAG Laser Therapy Systems ExQ-Laser
Working Principle
Treatment principle of Monaliza-2 Q-Switched Nd: YAG Laser Therapy Systems is based on laser selective photothermy and blasting mechanism of Q-switched laser. Energy form particular wavelength with accurate dose will act on certain targeted color radicals: ink, carbon particles from derma and epidermis, exogenous pigment particles and endogenous melanophore from derma and epidermis. When suddenly being heated, Pigment particles immediately blast into smaller pieces, which will be swallowed by macrophage phagocytosis and enters into lymph circulation system and finally be discharged out of body.
High Energy Q-Switched ND YAG Laser Advantages
1.The single pulse energy can be up to 1200MJ to eliminate the deeply endogenous pigmentation thoroughly and easily.
2.Two Stages ND:YAG system(double rods and double xenon lamp) with higher energy output, and make the pulse width as short as 5ns, get doubled output density under the same energy.
3.Fat-Top Beam output,uniformly distributed spot energy withour any heat point,achieve better treatment effect and less injuries.
4.Articulated arm from Korea with low optical loss, low maintenance, high stability and long lifetime.
5.Real-time energy monitor & Auto-Calibration System provides consistent and stable energy output.
Laser output mode |
Q-switched pulse |
Laser Wavelength |
1064/532nm |
Power input |
1200VA |
Pulse Duration |
5ns±1ns |
Repetition Rate |
1-5Hz |
Maximum pulse energy in the end of articulated arm |
Pulse Duration |
Error oflaser output energy |
≤±20% |
Spot size |
2-10mm continuously adjustable, error less than ±20%; |
Aiming beam wavelength |
635 nm; output power Pc shall be 0.1mW≤Pc≤5mW; |
The distance betweenspot center and aiming beam center |
≤0.5mm |
Nominal ocular hazard distance |
NOHD 3.3km |
Rated current of leakage |
10A |
Electrical |
220-240VAC, 50/60Hz |
Dimensions(W*D*H) |
370 mm ×957 mm×992 mm(without articulated arm) |
