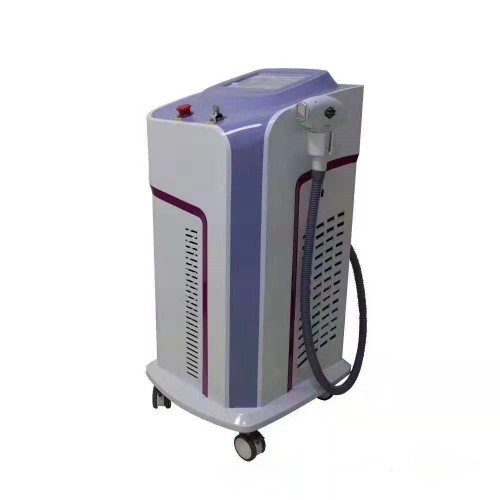

Non-Channel Technology 808nm/755nm/1064nm Diode Laser Hair Removal Machine
808nm diode laser process?1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.2. Clear treatment area.3. Turn on machine, adjust the parameter, set it to 'standby' .4. Put cooling gel on treatment area about 2mm.5. 808nm diode laser: Wear protect glasses for patient and operator.6. Shot the treatment area, let the crystal tip closely touch cooling gel, permitted to have 1/3 overlapping on treatment area.7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients feel warm or hot, you may put ice bag on treatment area until heat disappear.
German Laser Chip Hair Removal Machine Application:755nm, most effective on white and more light color skin type1064nm, made for treating darker and black color skin types808nm, most effective for white to medium tan color skin typesAll unwanted hair parts of the body, such as lip hair, whiskers, armpit hair, body hair, bikini hair.
More information you can click here
Wavelength |
808nm, 755nm, 1064nm |
Working frequency |
1~10hz |
Energy density |
1-120J/cm² |
Handle piece cooling |
TEC+Sapphire |
TEC cooling |
12V6A |
Spot size |
15*15mm/15*20mm/20*25mm/25*31mm ( optional ) |
Output power |
600W,900W,1200W ( optional ) |
Laser chips |
Germany laser Jenoptik,150W/piece |
Pulse width |
5ms~400ms |
Output mode |
Pulse output |
Language |
English ,Spanish ,Turkish, Russia ,German |
Packing size: |
56*69*115cm / GW:65KG ( Wooden case Packing ) |
display |
10' color touch screen |
Protective temperature |
55ºC interface select |
Water pump |
DP-60 diaphragm rods 12V |
Flow sensor |
3.5L/min flow requirement |
Water level switch |
Test water level |
Cooling system |
240×120cooling line(2pc),18 pcs channel |
Cooling fan |
4pcs fans,speed 3150r/min |
Case material |
ABS shell/metal shell |
Inter structure |
White zinc hob/color zinc hob |
Water tank volume |
3.6L |
Environmental moisture |
< 80% |
Environment temperature |
Air conditioning room,temperature≤28ºC |
Voltage |
110V/220V |
