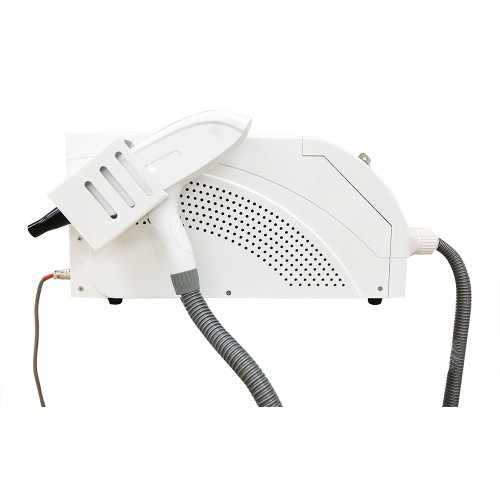

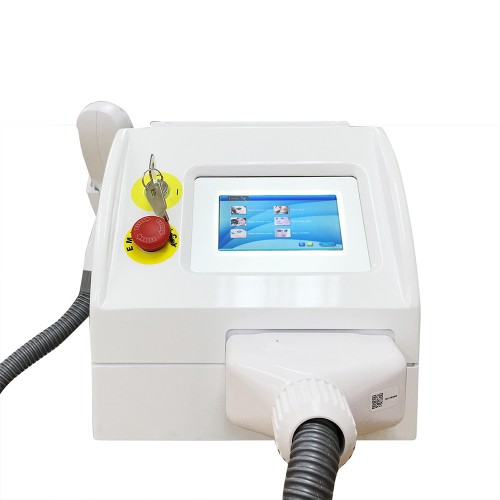

Mini Portable ND YAG Laser Tattoo Removal Equipment M4C-2
Q-Switched ND YAG Lasers
Working Theory
Utilizing the explosive effect of the Nd:YAG Laser, the laser lights permeate through the epidermis into dermis and take effects on pigment mass. The laser energy is absorbed by the pigment. Since the laser pulse width is extremely short in nanosecond and comes with super high energy, the pigment mass will swell quickly break to small pieces, which will be eliminated by body circulation system. Then the pigments become lighter gradually and finally disappear.
Q-Switched ND YAG Lasers Advantages
1. Micro computer counts the shoots with automatic control modules and user-friendly operation interface.
2. Double circulation refrigeration and intelligent control systems promising more continuous working hours.
3. Sophisticated treatment handpiece with aseismatic and shatter-resistant design, allowing stable performance.
4. Medical CE approved.
Light source |
Q-switched Nd: YAG solid-state laser |
Wavelength |
1064nm/532nm |
Energy level |
400~1600mJ |
Fluence |
12mJ/cm 2 |
Pulse duration |
8ns |
Frequecy |
1, 2, 3, 4, 5, 6Hz |
Cooling system |
Built-in distilled water-circle system |
Power requirement |
220VAC/10A or 110VAC/10A |
Dimension |
38 × 20 × 20cm |
Weight |
16kg |
