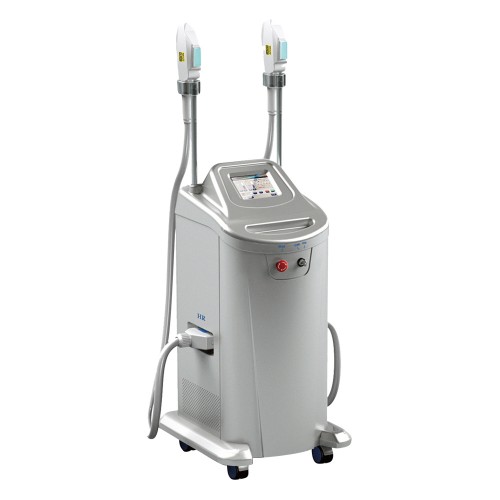

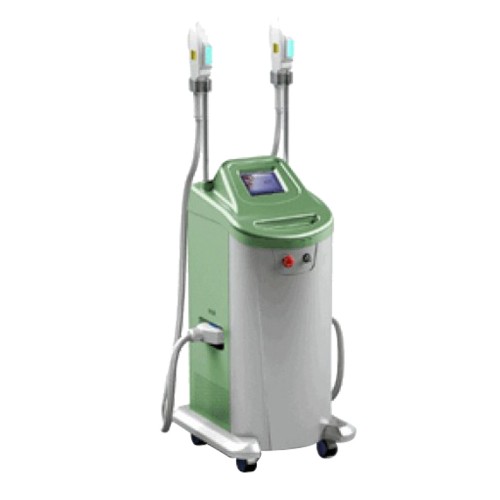

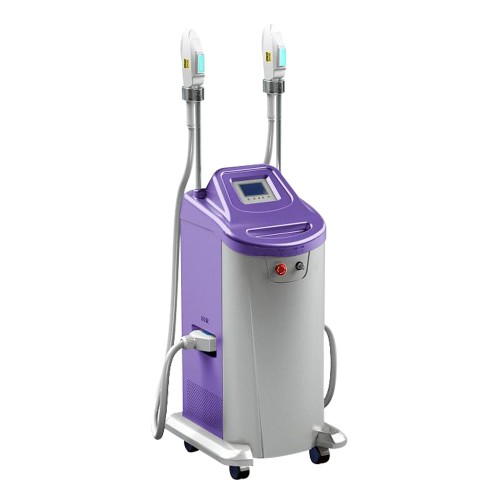

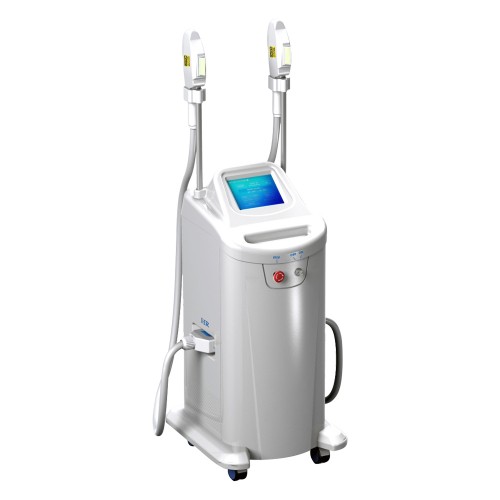

IPL Hair Removal & Skin Rejuvenation Equipment-Tony (SMQ-NYC Model)
Working TheoryIntense pulsed light, commonly abbreviated as IPL, is a kind of high strength, broad spectrum and non-succession light, used by clinics and medical practitioners to perform various skin treatments including hair removal and photo rejuvenation.Through the optical and thermal effect generated and sourced from the light, it achieves the purpose of removing unexpected hair by destroying the hair follicles tissues rapidly and permanently.IPL can permeate the epidermis to the derma and take effect on the exceptional pigment and vessel such as target tissue to break the abnormal pigment cells, close the abnormal blood vessels, stimulate the proliferation of collagen and improve the rearrangement of elastic fiber, finally achieving the purpose of pigment removal and skin rejuvenation.
Handlepieces details
HR handlepiece:
Wavelength:690~1200nm
Spot size:16*57mm2
Fluence:up to 45J/cm2
SR handlepiece:
Wavelength:590~1200nm
Spot size:16*57mm2
Fluence:up to 45J/cm2
VR handlepiece:
Wavelength:690~1200nm
Spot size:16*57mm2
Fluence:up to 45J/cm2
IPL Hair Removal Equipment Advantages:
1. Portable design, which is convenient for you to carry and move. Large touch screen for simple operation.
2. Efficient Hair-removal: Super big spot hair-removal hand piece makes efficiency 2 times to general hand piece, at same time to save cost of exchanging hand piece.
3. Super big spot (16*57mm) handle piece makes the treatment more quickly, and the normal spot (8*34mm) handle piece can be used for small area treatment.
4. Semi-conductor cooling system would make the temperature of hand piece crystal reach at -4°C during 5 minutes after turning it on, which ensures IPL treatment safe and comfortable. Lower temperature cooling system makes it more effective and comfortable.
5. Certified by Germany TÜV Rheinland ISO 13485 and Medical CE.
Ight source |
Intense Pulsed light |
Wavelength |
SR: 560-1200nm/HR: 690-1 200nm |
Transfer system |
Crystal light guide |
Safety Category |
Class I Type B |
Pulse width |
See 3-5 |
Repetition |
0.5Hz |
Spot sixe |
8mm X 34mm/16mm x 57mm,error +0.2mm |
Surface temperature of the crystal |
≤37℃ |
Cooling system |
Semiconductor refrigerator wind cooling, water cooling |
Dimensions(L x W x H) |
940mm X 790mm X 460mm |
Weight (NW) |
30kg |
Fuse specifications |
Ø5X20 230V 8A |
Input power |
1200VA |
Power |
AC230V, 50HZ |
Beijing Sincoheren S & T Development Co., Ltd. is a China IPL Hair Removal Equipment Manufacturer of IPL, IPL Hair Removal Machine. Choose us, you can be get most careful and thoughtful service!
