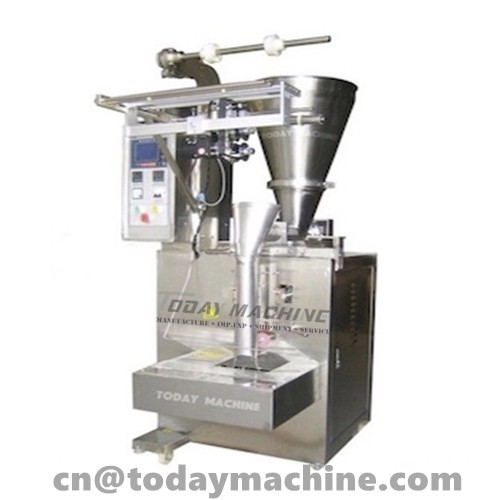

Powder Packaging Machine with Auger System
Flour, Cocoa powder, Coffee powder, Cocoa powder, Spice, seasoning, pepper,Chemical powder, Washing powder, Milk powder, protein powder…
Standard
Closed sealer housing
Intuitive operator guidance on the button/touch panel
Integration of all identification systems
Printed mark identification & measurement of bag lengths
Use of different heat sealing and welding instruments
Minimal time required when changing rolls
Stop when film roll end. Detect the fault automatically.
Seal tight, no leaking.
Available option
Stainless steel and Paint version
Display panel: Touch screen and Button screen
Date & batch printer
Date embossing system
Gas-flushing system
Exhaust sponge system, less/more air inside the packet
Easy tearing notch
Round and euro-hole punch, carrying handle punch
Mixing system
Numerical control cutter, 1-99 packet
Flat bottom package with center seal
Frequency control system, less noise
Power supply: – 110V, 120V, 220V, 240V. – 50Hz, 60Hz.
Technical parameter
|
Model |
VFFS-280A |
VFFS-450A |
VFFS-520A |
|
Film width |
Max 300mm,11” |
Max 420mm,18” |
Max 500mm |
|
Bag size |
L: 40-175mm,2-7”W:10-140mm,2-6” |
L:50-275/295mm,3-12”W:60-195mm,3-9” |
L:50-275/295mm,3-12”W:60-240mm,3-9.5” |
|
Output |
30-70pcs/min |
15-36 pcs/min |
10-30pcs/min |
|
Bag type |
Pillow seal,3 side seal4 side sealgusset sealpyramid seal |
Pillow sealgusset seal |
Pillow sealgusset seal |
|
Packing range(ml≠g) |
0.5-3ml2-10ml8-20ml15-90ml20-100ml50-200ml |
50-200ml100-500ml200-1000ml |
50-200ml100-500ml200-1000ml |
|
Power |
1.8KW |
2.6KW |
3KW |
|
Dimension |
1100x1200x1660mm |
1200*1100*2000mm |
1200*1100*2000mm |
|
Weight |
280kg |
360kg |
380kg |
