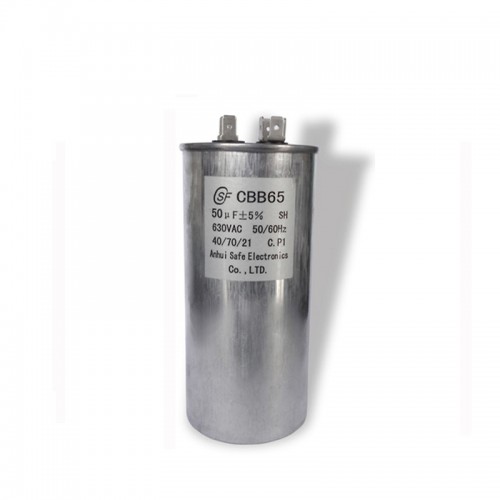

CBB65 Capacitor AC Motor Capacitor

FOB Price: $0.5- $3.33

1 Piece (Min. Order)

MOQ.: 1 Piece
Packaging:
Port
Lead Time

Product Details

*Product Description*The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.

Technical Specifications
Model NO.	CBB65 Capacitor
Type	AC Motor Capacitor
Structure	Single Capacitor
Manufacturing Material	Polypropylene
Electrolyte	Polypropylene Film
Reference Standards	GB/T 3667.1(IEC60252-1)
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety production	S2
Voltage range	220VAC 370VAC 440VAC 450VAC
Capacitance range	2uF~100uF
Capacitance tolerance	±5% ±10% ±15%
Dissipation factor	20*10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ.uF(100Hz,20ºC,1min)
Altitude	≤2000m
Remain voltage when put into operation	No more than 10% of rated voltage
Maximum allowed voltage	No more than 1.1 times rated voltage
Maximum allowed current	No more than 1.3 times rated current
Package Type	Export Standard Carton for CBB65 Capacitor
Production Capacity	3500,000PCS/Month
MOQ	1PCS
Size	Negotiable

* Note:The Composite Capacitor can be also customized producing according to our customer's request.*Dimensions(mm)*

No	Specifications	Terminal	Size
1	CBB65-450VAC 2μF ~9μF	2×4 or 2×2 pin	Φ40×60
2	CBB65-450VAC-10μF	2×4 or 2×2 pin	Φ40×60
3	CBB65-450VAC-12.5μF	2×4 or 2×2 pin	Φ40×70
4	CBB65-450VAC-15μF	2×4 or 2×2 pin	Φ45×70
5	CBB65-450VAC-20μF	2×4 or 2×2 pin	Φ45×75
6	CBB65-450VAC-25μF	2×4 or 2×2 pin	Φ50×85
7	CBB65-450VAC-30μF	2×4 or 2×2 pin	Φ50×100
8	CBB65-450VAC-35μF	2×4 or 2×2 pin	Φ50×100
9	CBB65-450VAC-40μF	2×4 or 2×2 pin	Φ50×100
10	CBB65-450VAC-45μF	2×4 or 2×2 pin	Φ50×100
11	CBB65-450VAC-50μF	2×4 or 2×2 pin	Φ50×125
12	CBB65-450VAC-55μF	2×4 or 2×2 pin	Φ50×125
13	CBB65-450VAC-60μF	2×4 or 2×2 pin	Φ50×125
14	CBB65-450VAC-65μF	2×4 or 2×2 pin	Φ55×125
15	CBB65-450VAC-70μF	2×4 or 2×2 pin	Φ55×125
16	CBB65-450VAC-80μF	2×4 or 2×2 pin	Φ60×125
17	CBB65-450VAC-90μF	2×4 or 2×2 pin	Φ60×125
18	CBB65-450VAC-100μF	2×4 or 2×2 pin	Φ63.5×125

* Note:Other specifications,size,terminal outside table and price are negotiable.*Appearance & Application*Installation Type: Surface MountShape: Cylinder or EllipseCapacitor Case: Aluminum CaseApplication: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency for family air conditioners and high power illuminators for the sake of power factor compensation.*Packing&Delivery*Packing: Export Standard Carton Packing for CapacitorsDelivery Detail: 7~10 days after paymentPort: Shanghai or Ningbo*Advantages*1.Leading tachnology: Our quality management system are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications.2.Reliable productivity: Our company now has 3 high-vacuum coating machines,10 high-speed Sillting machines,6 winding machines and for -gun gold spary system and other automatic equipments.3.Reasonable price: Executive"Industrial products 10% Profit in the first."4.Large inventory: This is the guarantee of the timely delivery.5.Fexible production: User-specific products,starting from the next single.6.Cordial service: 7*24 hours online,prompt reply and timely delivery.*Welcome to Contact Us*Company Name: Anhui Safe Electronics Co.,LtdAdd: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, ChinaTel: 0086 0562 2821018Fax: 0086 0562 2821558Mobile Phone: 0086-13305620368 (Helen Hu) Mail Adress: [email protected]: www.film-capacitor.comThere is no best product, only the most suitable products!
