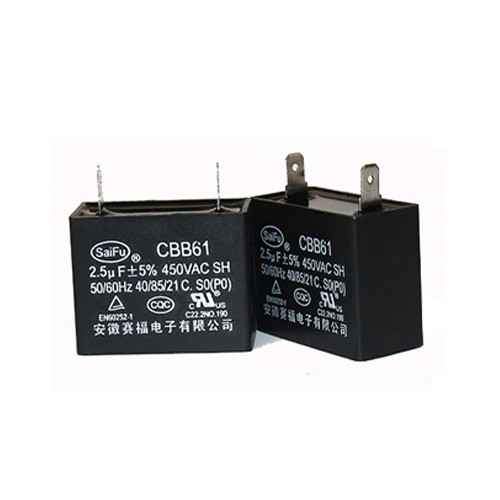

CBB61 Capacitor AC Motor Capacitor

FOB Price: $0.08- $1.03

1 Piece (Min. Order)

MOQ.: 1 Piece
Packaging:
Port
Lead Time

Product Details

*Product Description*CBB61 Capacitor uses metallized aluminum zinc film with thickened edges as electrode and medium.This film is wound by winding machine and put into aluminum shell. Then, the shell is filled with castor oil with high purity to keep it in a vacuum state, and the product can resist high temperature.This product has better performance and long survice life. This product also uses the second generation machine explosion-proof design as an explosion-proof method ,thus the performance of the product is greatly guaranteed and improved.

Technical Specifications
Model NO.	CBB61 Capacitor
Type	AC Motor Capacitor
Structure	Single Capacitor
Manufacturing Material	Polypropylene
Electrolyte	Polypropylene Film
Reference Standards	GB/T 3667.1(IEC60252-1)
Climatic category	40/70/21,40/85/21
Class of operation	Class B(10000h) Class C(3000h)
Class of safety production	S0/S3
Voltage range	220VAC 370VAC 440VAC 450VAC
Capacitance range	1uF~40uF
Capacitance tolerance	±5%,±10%,±15%
Dissipation factor	20*10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000s(100Hz,20ºC,1min)
Altitude	≤2000m
Remain voltage when put into operation	No more than 10% of rated voltage
Maximum allowed voltage	No more than 1.1 times rated voltage
Maximum allowed current	No more than 1.3 times rated current
Package Type	Export Standard Carton for CBB61 Capacitor
Production Capacity	3500,000PCS/Month
MOQ	1 PCS
Size	Negotiable

* Note: The Composite Capacitor can be also customized producing according to our customer's request. *Dimensions(mm)*

Specifications	450VAC	250VAC
1μF	37×13×23	37×13×23
1.2μF	37×13×23	37×13×23
1.5μF	37×14×25	37×13×23
2μF	37×16×28	37×13×23
2.5μF	37×18×28	37×14×25
3μF	47×18×29	37×14×25
3.5μF	47×18×34	37×16×28
4μF	47×18×34	37×16×28
4.5μF	47×22×34	37×16×28
5μF	47×22×34	37×18×28
5.5μF	47×22×34	37×18×28
6μF	47×22×34	47×18×29
6.5μF	48×26×38	47×18×29
7μF	48×26×38	47×18×29
8μF	48×26×38	47×18×34
10μF	58×26×44	47×22×34
12μF	58×26×44	47×22×34
15μF	58×26×44	47×22×34
16μF	58×26×44	48×26×38
20μF	58×35×49	48×26×38
25μF	58×35×49	48×26×38
30μF	negotiable	58×26×44
35μF	negotiable	58×26×44

Note:Other specifications,size,terminal outside table and price are negotiable.*Appearance & Application*Installation Type: Surface MountShape: SquarenessCapacitor Case: Plastic CaseApplication: CBB61 Capacitor widely applied to the starting and running of AC single-plase motors at 50Hz/60Hz frequency power, such as air conditioning fans, electric fans, fans exhaust fans.*Packing&Delivery*Packing: Export Standard Carton Packing for CapacitorsDelivery Detail: 7~10 days after paymentPort: Shanghai or Ningbo *Advantages*1.Leading tachnology: Our quality management system are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications.2.Reliable productivity: Our company now has 3 high-vacuum coating machines,10 high-speed Sillting machines,6 winding machines and for -gun gold spary system and other automatic equipments.3.Reasonable price: Executive"Industrial products 10% Profit in the first."4.Large inventory: This is the guarantee of the timely delivery.5.Fexible production: User-specific products,starting from the next single.6.Cordial service: 7*24 hours online,prompt reply and timely delivery.*Welcome To Contact Us*Company Name: Anhui Safe Electronics Co.,LtdAdd: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, ChinaTel: 0086 0562 2821018Fax: 0086 0562 2821558Mobile Phone: 0086-13305620368 (Helen Hu) Mail Adress: [email protected]: www.film-capacitor.comThere is no best product, only the most suitable products!
